Site Transformers

Providing a consistent supply of 110 Volts for lighting and tool use these transformers are ideal to distribute power to the required application across your site.

Standard 110 Volt transformers offer 4 x 16Amp sockets and 2 x 32Amp sockets and a larger option of 6 x 16Amp plus 3 x 32Amp sockets. We also have 20kva transformers available which again offer more outlets.

Full specs are below.

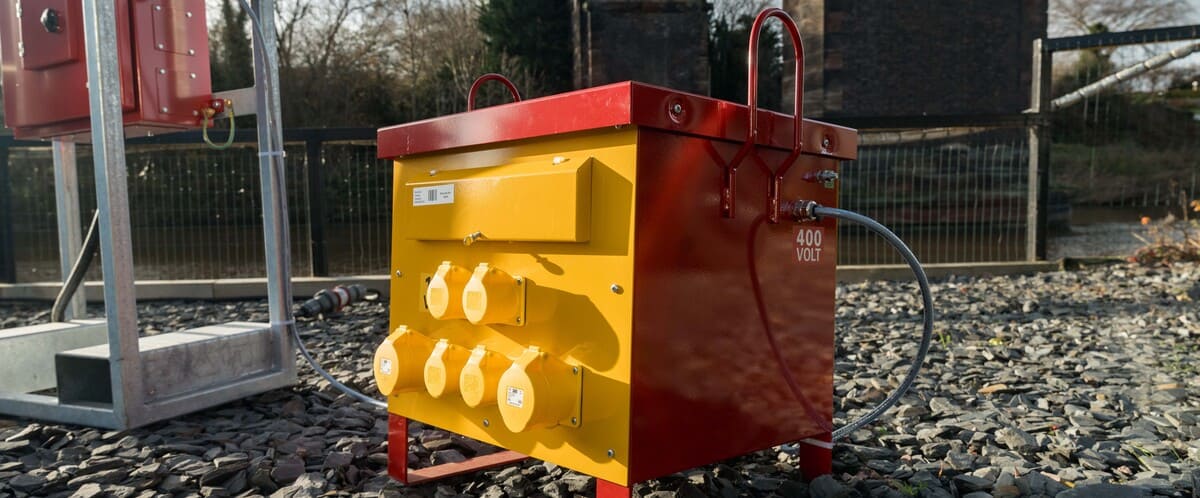

Red and yellow portable electrical transformer box labeled 400 volt on gravel ground outdoors.

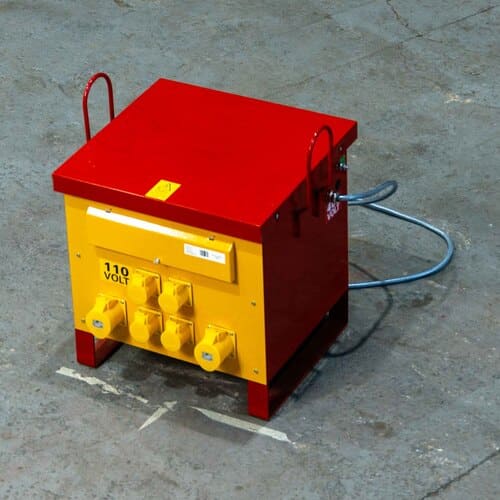

Portable yellow and red electrical transformer box with multiple outlets labeled 110 volts on a concrete surface.

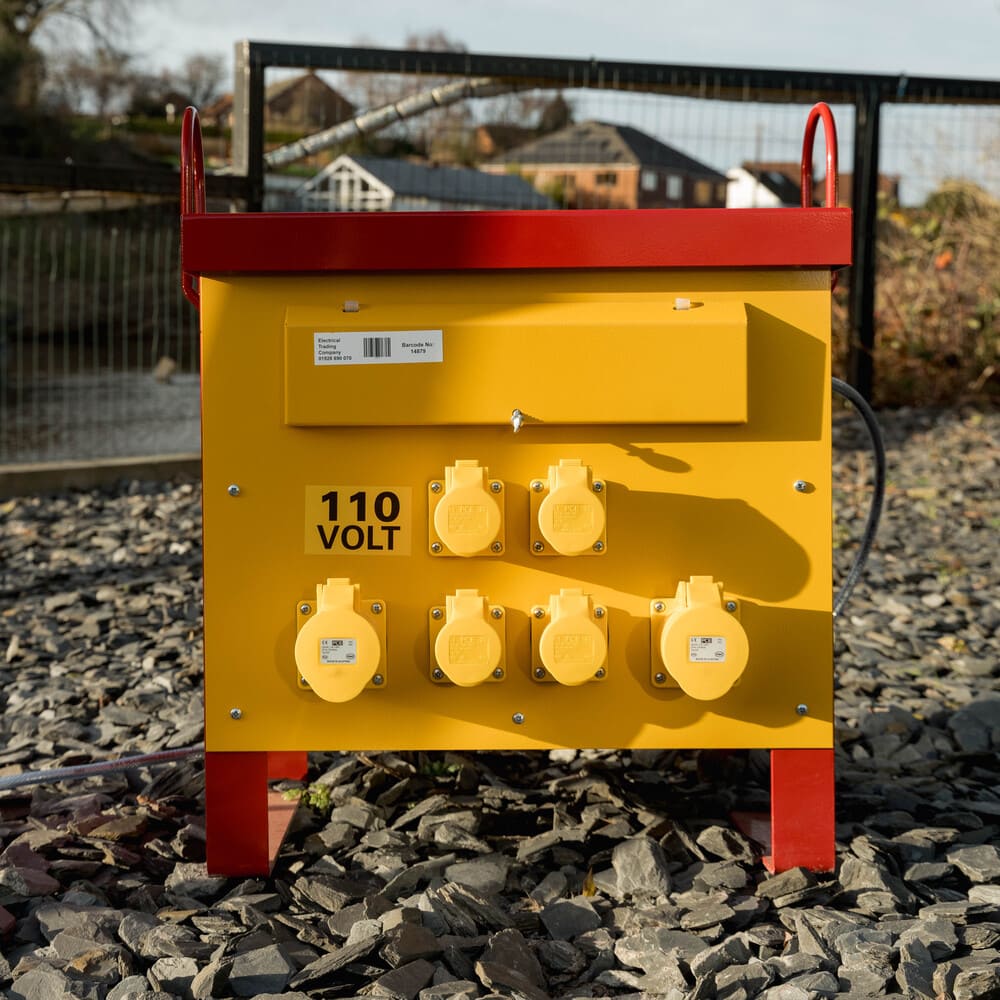

Yellow and red portable electrical power distribution box with six yellow sockets labeled 110 volt on rocky ground outdoors.

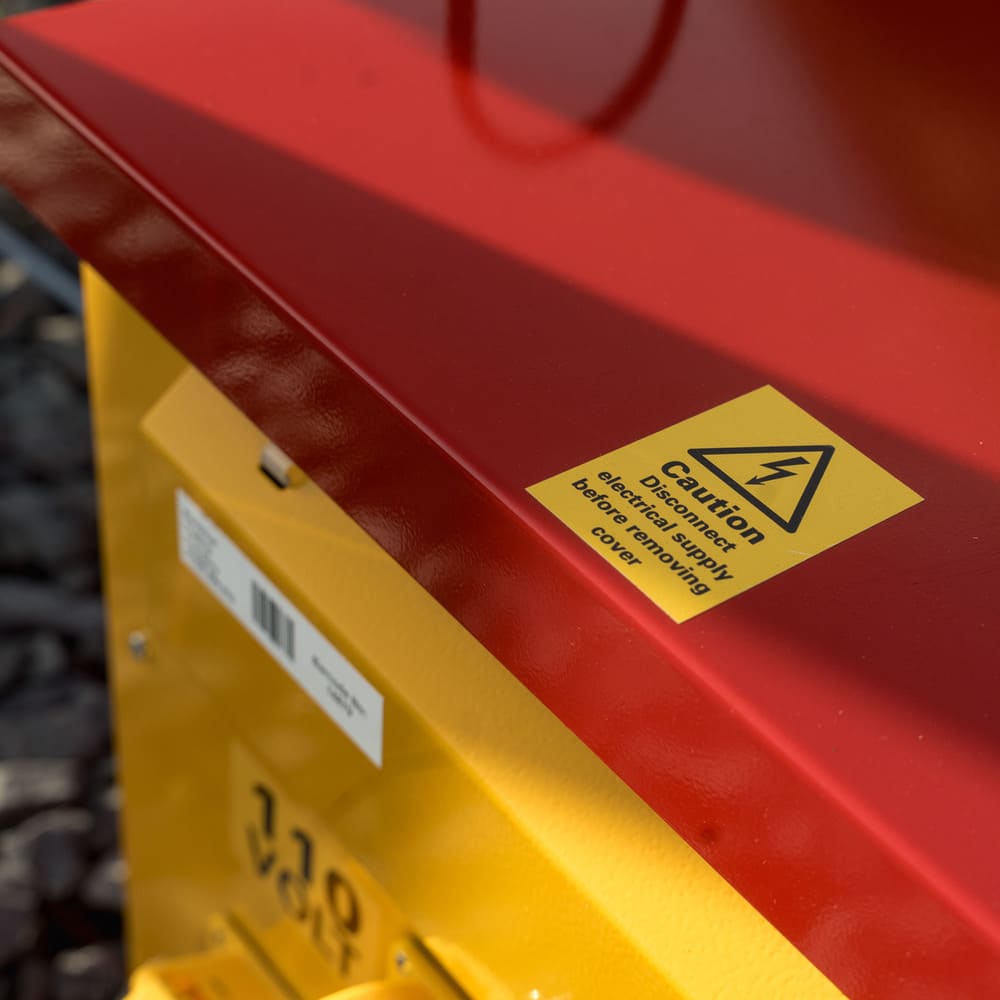

Close-up of a red and yellow electrical device with a caution sticker warning to disconnect electrical supply before removing the cover.

10kVA 3 Phase Transformer

Specification	Detail
Rating	10 kVA
Input voltage	400–415V AC 3 phase
Incoming connection	32A 3 phase plug
Output voltage	110V AC 1 phase
Sockets	4 × 16A 3-pin 2 × 32A 3-pin
Duty	Continuous
Dimensions (H×W×D)	605 × 570 × 420 mm
Weight	75 kg

10kVA 1 Phase Transformer

Specification	Detail
Rating	10 kVA (10,000 Watts)
Input voltage	240V AC 1 phase
Incoming connection	32A 1 phase plug
Output voltage	110V AC
Sockets	4 × 16A 2 × 32A
IP rating	Box/casing IP23 / Sockets IP44
Product code	LM07370
Weight	66 kg

15kVA 3 Phase Transformer

Specification	Detail
Rating	15 kVA
Input voltage	400–415V AC 3 phase
Incoming connection	63A 3 phase plug
Output voltage	110V AC 1 phase
Sockets	6 × 16A 3-pin 3 × 32A 3-pin
Duty	Continuous
Dimensions (H×W×D)	702 × 570 × 457 mm
Weight	Approx 140 kg

20kVA 3 Phase Transformer

Specification	Detail
Rating	20 kVA
Input voltage	400–415V AC 3 phase
Incoming connection	125A 3 phase plug
Output voltage	110V AC 1 phase
Sockets	8 × 16A 3-pin 4 × 32A 3-pin
Duty	Continuous
Dimensions (H×W×D)	907 × 628 × 660 mm
Weight	Approx 200 kg
