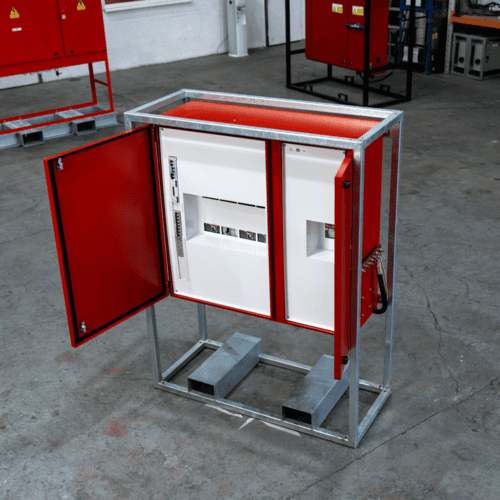

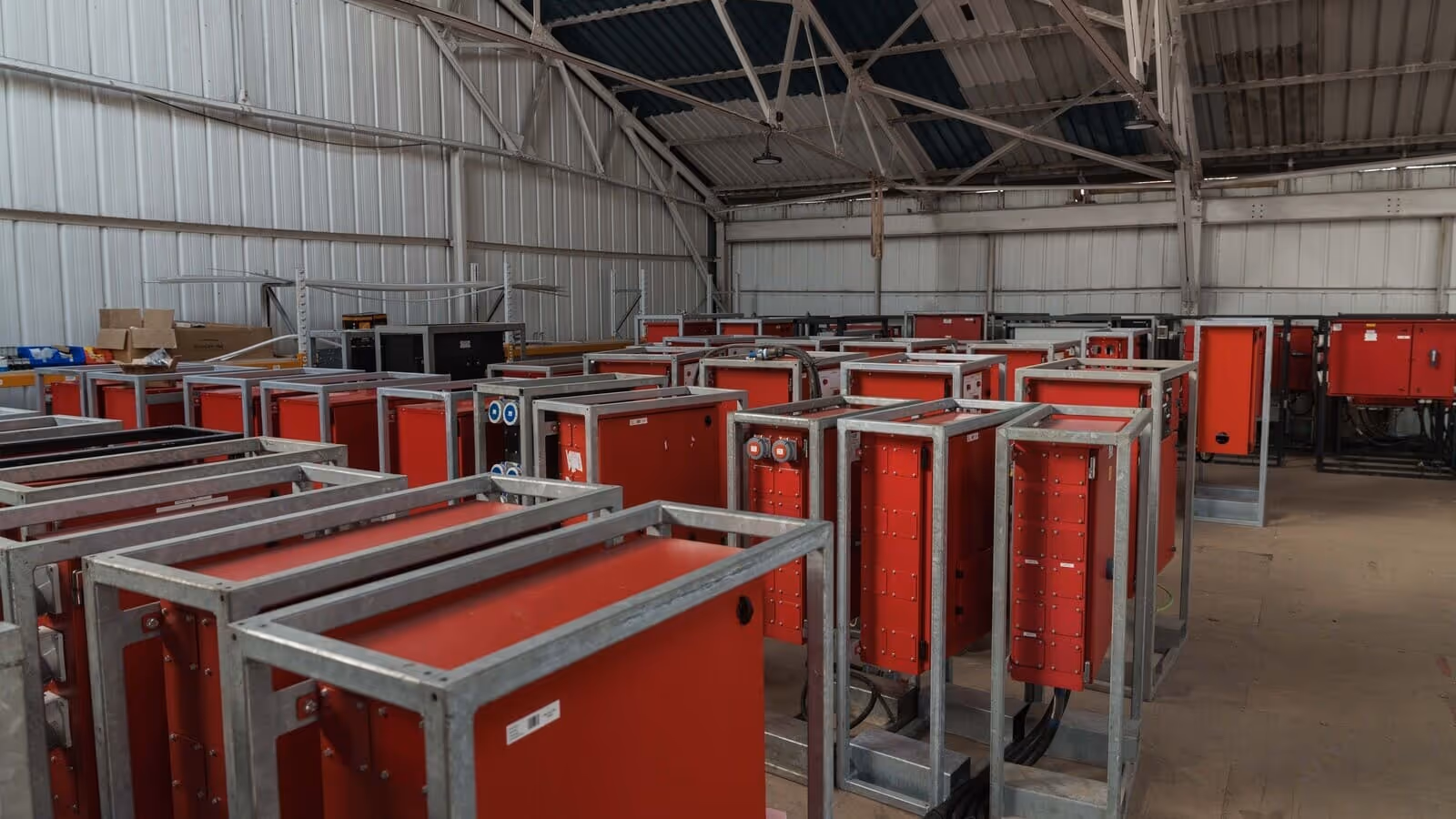

Distribution Boards
Available in a wide range of configurations our in house built boards are set off the ground for easier use, they are weather proof and can come in any size required.
From distribution of generator power to site cabins, pumps, transformers or temporary power for buildings.

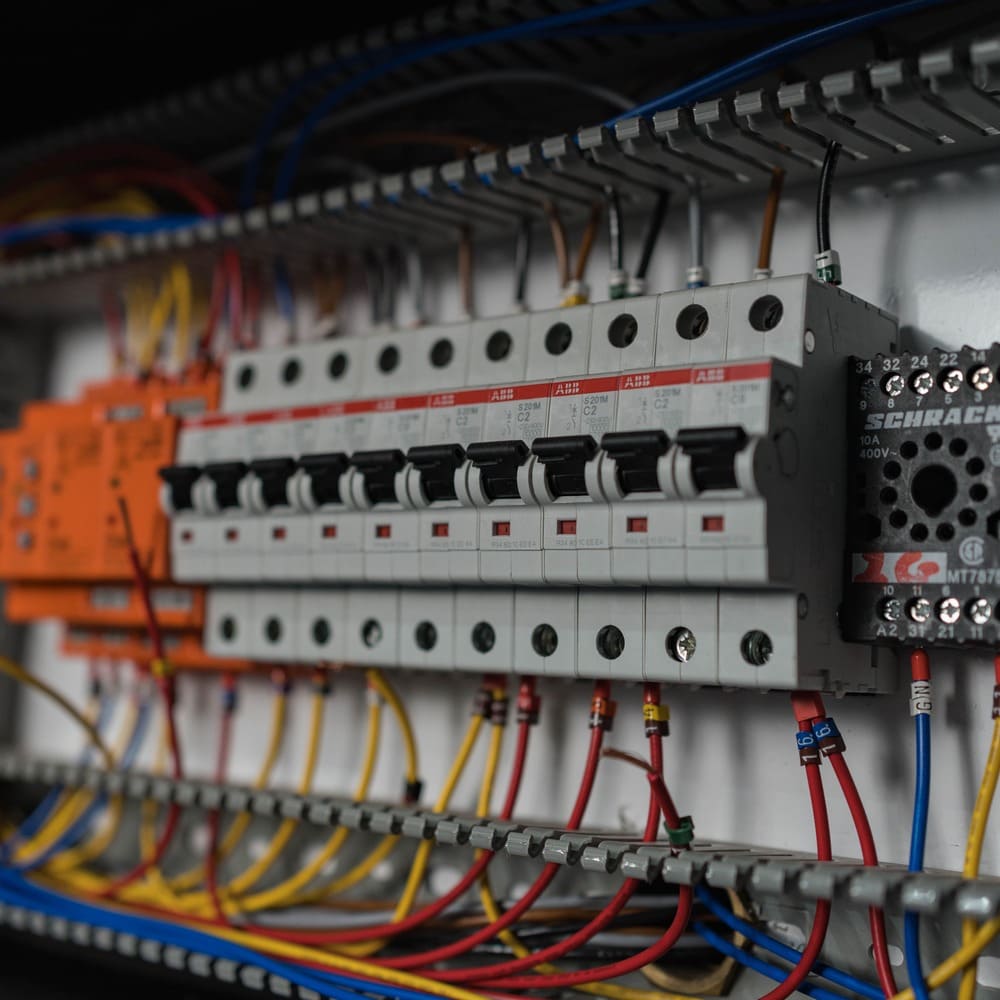

Smaller 100a boards are available with 16a, 32a, 63a outlets either 1 or 3 phase. Our largest boards are 1600a and have 4 x 400a MCCBs or 2 x 800a MCCBs.
The boards are customised for each job to match the customers needed input and output specs.
From distribution of generator power to site cabins, pumps, transformers or temporary power for buildings.
Smaller 100a boards are available with 16a, 32a, 63a outlets either 1 or 3 phase. Our largest boards are 1600a and have 4 x 400a MCCBs or 2 x 800a MCCBs.
The boards are customised for each job to match the customers needed input and output specs.
.avif)
.png)
.jpg)
.png)

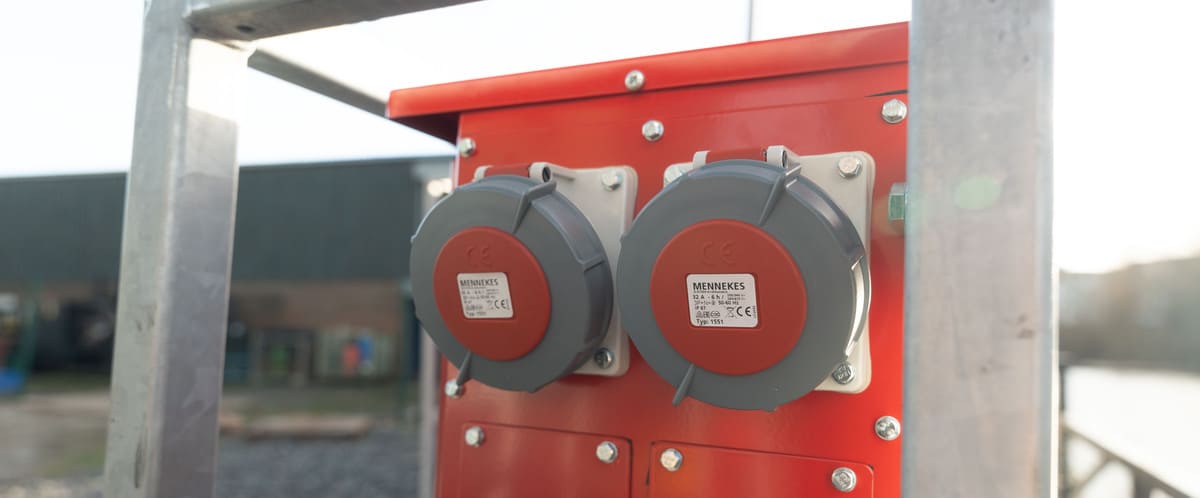

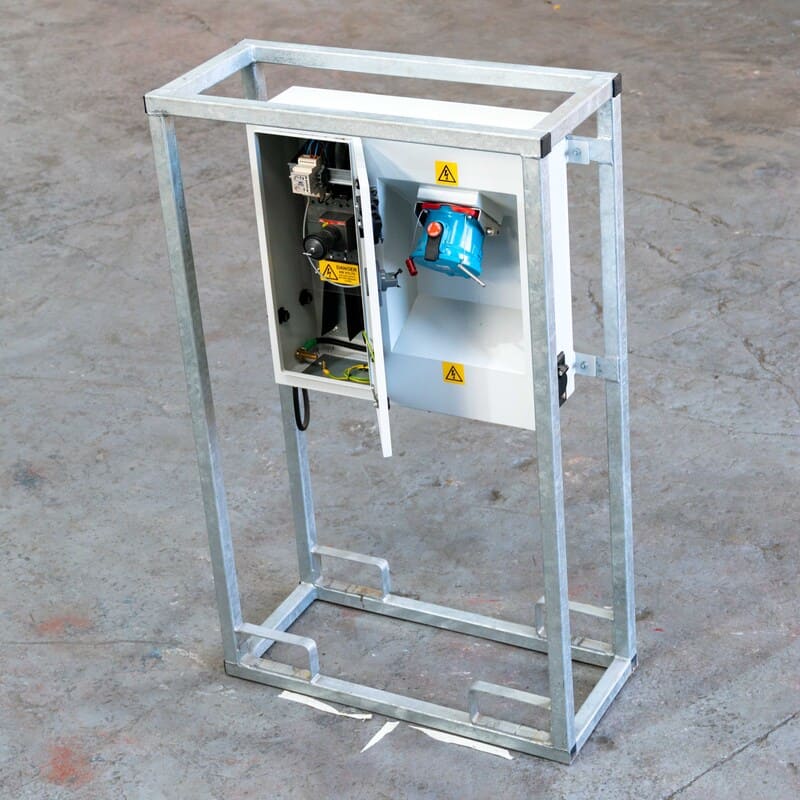

Custom Distribution Board Configurations
| Incoming 3ph amperage | Incoming connection | Example set up 1 | Example set up 2 |
|---|---|---|---|
| Incoming amperage 63A | Incoming connection Plug or lug |
Example set up 1
2 × 32A 3 phase sockets
|
Example set up 2
4 × 32A 1 phase sockets
|
| Incoming amperage 100A | Incoming connection Plug or lug |
Example set up 1
6 × 32A 1 phase MCBs
1 × 16A MCB
|
Example set up 2
8 × 32A 1 phase MCBs
1 × 63A 1 phase MCB
|
| Incoming amperage 125A | Incoming connection Plug or lug |
Example set up 1
6 × 32A 1 phase sockets
|
Example set up 2
1 × 32A 3 phase socket
2 × 32A 1 phase sockets
4 × 16A 1 phase sockets
|
| Incoming amperage 160A | Incoming connection Plug, lug or Powerlock |
Example set up 1
8 × 32A 1 phase sockets
|
Example set up 2
2 × 32A 3 phase sockets
2 × 63A 1 phase sockets
2 × 16A 1 phase sockets
|
| Incoming amperage 200A | Incoming connection Lug or Powerlock |
Example set up 1
12 × 32A 1 phase sockets
|
Example set up 2
15 × 32A 1 phase sockets
4 × 16A 1 phase sockets
|
| Incoming amperage 250A | Incoming connection Lug or Powerlock |
Example set up 1
18 × 32A 1 phase sockets
|
Example set up 2
16 × 32A 1 phase sockets
4 × 16A 1 phase sockets
|
| Incoming amperage 400A | Incoming connection Lug or Powerlock |
Example set up 1
5 × 32A 3 phase sockets
3 × 63A 3 phase sockets
|
Example set up 2
10 × 32A 3 phase sockets
1 × 16A 3 phase socket
|

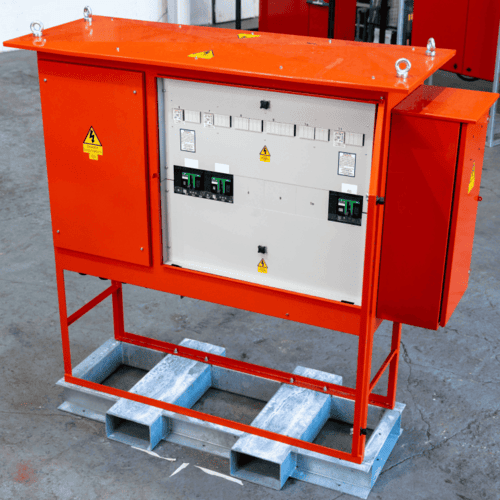

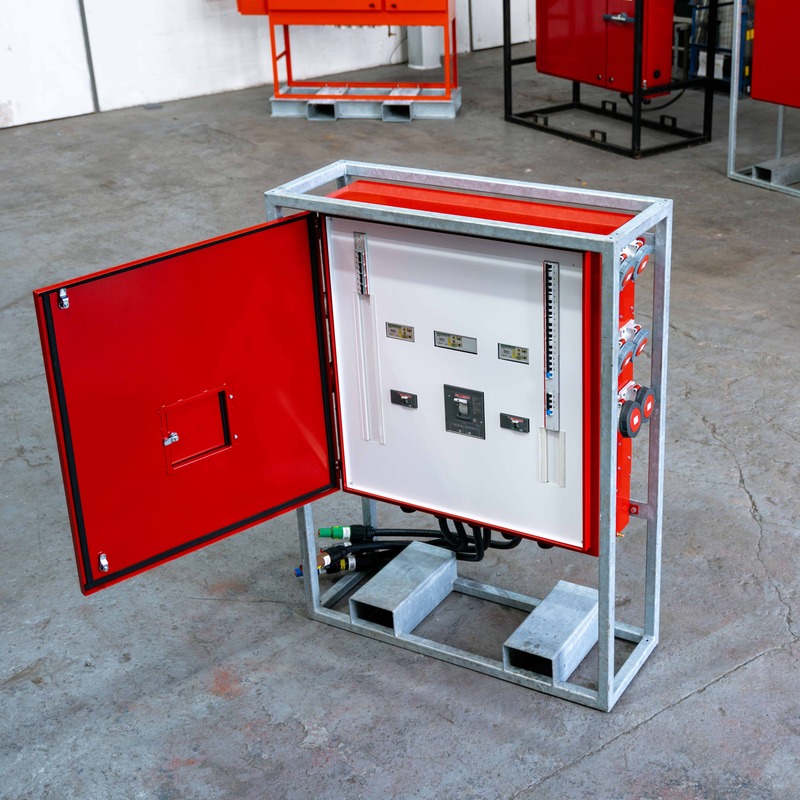

Large Distribution Board Configurations
| Incoming 3ph amperage | Incoming connection | Outgoing MCCBs — various configurations |
|---|---|---|
| 630A | Lug or Powerlock |
125A
160A
200A
|
| 800A | Lug or Powerlock |
160A
200A
400A
|
| 1200A | Lug or Powerlock |
400A
|
| 1600A | Lug or Powerlock |
125A
200A
400A
630A
800A
|
