H07 Cables
H07 cables are heavy-duty, flexible power cables designed for demanding environments such as construction sites, commercial properties, events, and other generator power distribution.
We stock a wide range from 2.5mm multi-core to 240mm single core, typically in 10m or 25m lengths with options up to 50m, ready for fast dispatch.

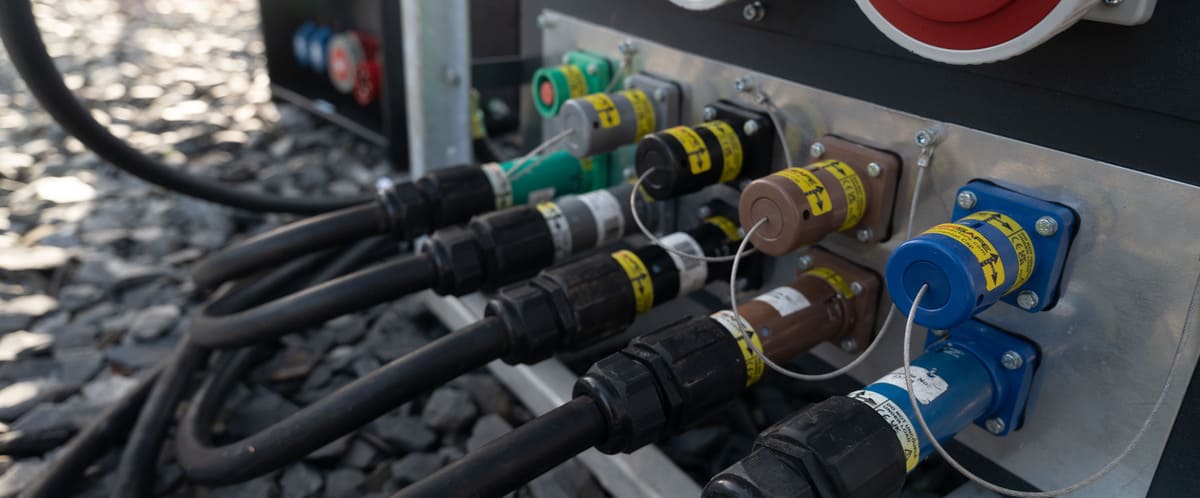

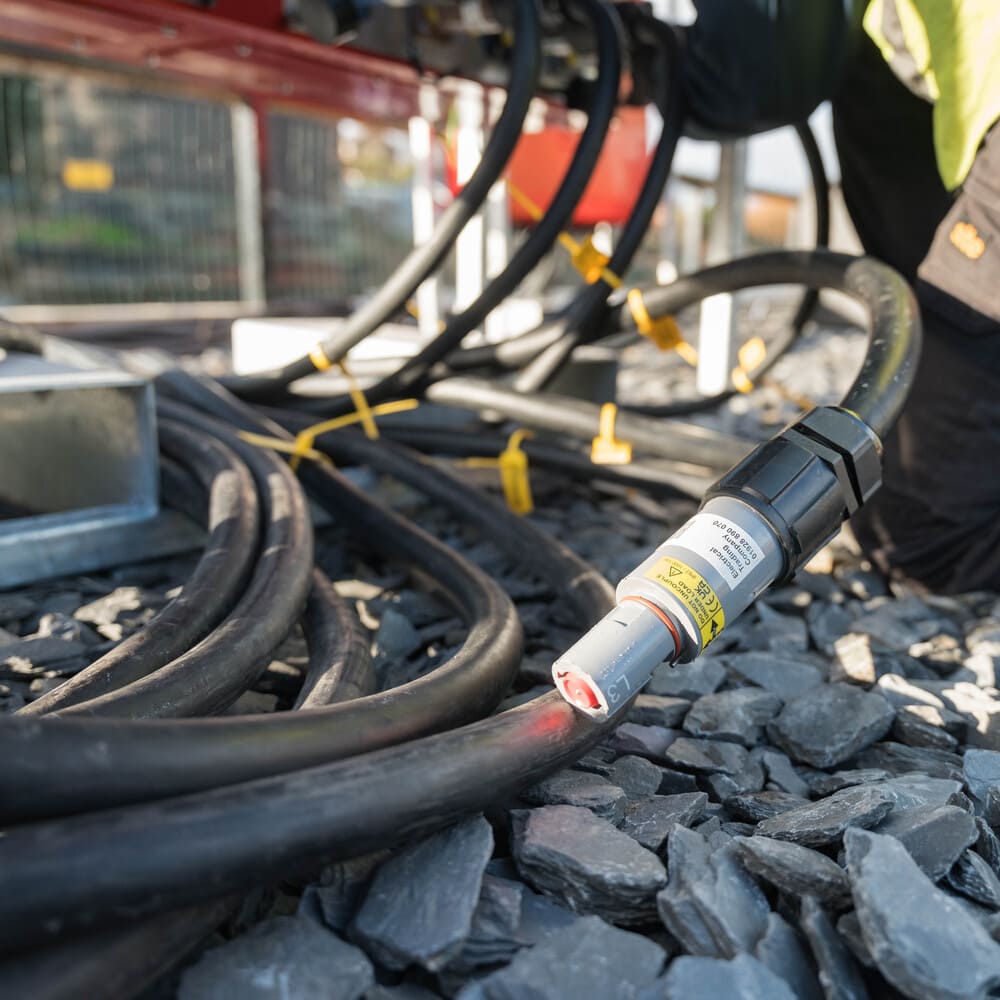

Cables can be supplied terminated with Powerlocks or lugs and configured to meet specific requirements.
We stock a wide range from 2.5mm multi-core to 240mm single core, typically in 10m or 25m lengths with options up to 50m, ready for fast dispatch.
Cables can be supplied terminated with Powerlocks or lugs and configured to meet specific requirements.
.jpg)
.jpg)
.jpg)
H07RN-F Single Core Cable
| Size | Weight per metre | Weight per 10m extension | Weight per 25m extension | Current rating (single core, free air) |
|---|---|---|---|---|
| Size35mm² | Weight/metre0.49 kg/m | 10m extension24.3 kg | 25m extension60.6 kg | Current rating140A |
| Size70mm² | Weight/metre0.89 kg/m | 10m extension44.6 kg | 25m extension111.5 kg | Current rating216A |
| Size95mm² | Weight/metre1.16 kg/m | 10m extension58.0 kg | 25m extension145.0 kg | Current rating258A |
| Size120mm² | Weight/metre1.44 kg/m | 10m extension71.8 kg | 25m extension179.5 kg | Current rating302A |
| Size150mm² | Weight/metre1.75 kg/m | 10m extension87.4 kg | 25m extension218.5 kg | Current rating347A |
| Size240mm² | Weight/metre2.70 kg/m | 10m extension135.0 kg | 25m extension337.3 kg | Current rating471A |
Current ratings per BS7671 Table 4F1A, 60°C conductor operating temperature, single core cable in free air at 30°C ambient. Weight per metre derived from nominal kg/km figures per BS EN 50525-2-21. Extension weights based on 5 cores per extension.
H07RN-F Cable — Available Sizes
| Rating | Phase | Weight/metre | 10m extension | 25m extension |
|---|---|---|---|---|
| Rating16A | Phase1 Phase | Weight/metre0.24 kg/m | 10m extension✓ | 25m extension✓ |
| Rating16A | Phase3 Phase | Weight/metre0.35 kg/m | 10m extension✓ | 25m extension✓ |
| Rating32A | Phase1 Phase | Weight/metre0.42 kg/m | 10m extension✓ | 25m extension✓ |
| Rating32A | Phase3 Phase | Weight/metre0.65 kg/m | 10m extension✓ | 25m extension✓ |
| Rating63A | Phase1 Phase | Weight/metre1.05 kg/m | 10m extension✓ | 25m extension✓ |
| Rating63A | Phase3 Phase | Weight/metre1.55 kg/m | 10m extension✓ | 25m extension✓ |
| Rating125A | Phase1 Phase | Weight/metre1.90 kg/m | 10m extension✓ | 25m extension✓ |
| Rating125A | Phase3 Phase | Weight/metre2.75 kg/m | 10m extension✓ | 25m extension✓ |
All cable is supplied with IP67 plug and socket. Lugged options are also available. For longer runs please contact us to ensure volt drop is accounted for.
