Event Board Hire

We have a wide range of Event Boards ready for any size event. Get in touch if you want to talk through your needs to ensure you have the right kit to supply everything you need to be powered.

In addition to the widely used event boards we also offer boards that have steel housing ensuring they have additional safeyty features.

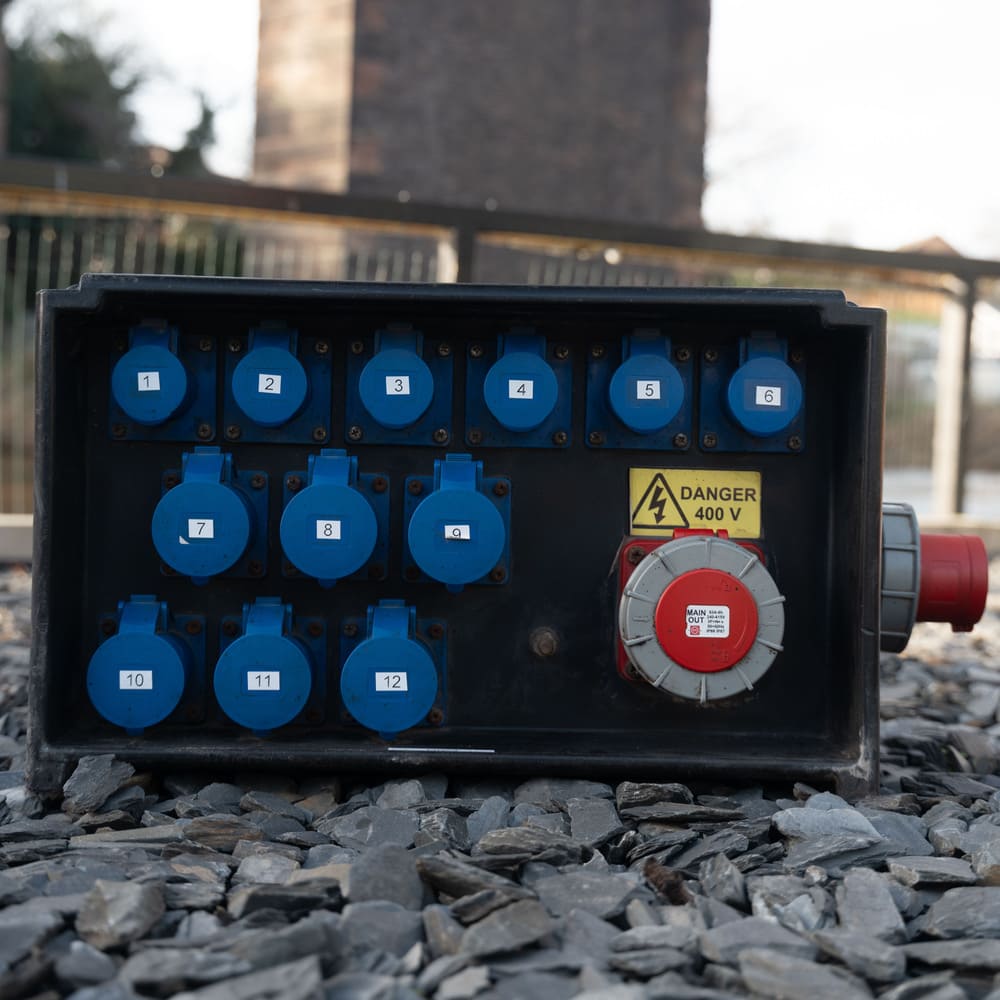

Black electrical panel box with twelve blue numbered sockets and a red circular main output switch, placed on gravel outdoors.

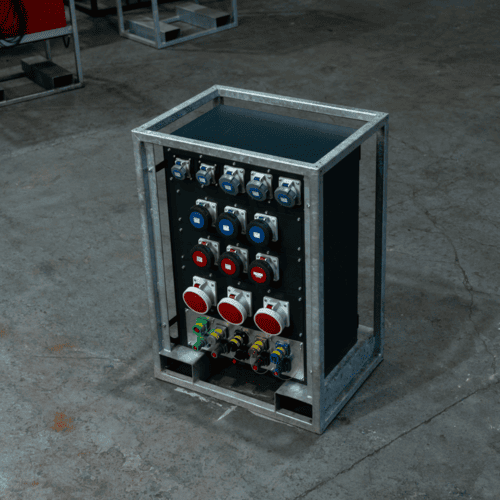

Industrial electrical power distribution box with multiple blue, red, and gray connectors mounted on a metal frame, placed on a concrete floor.

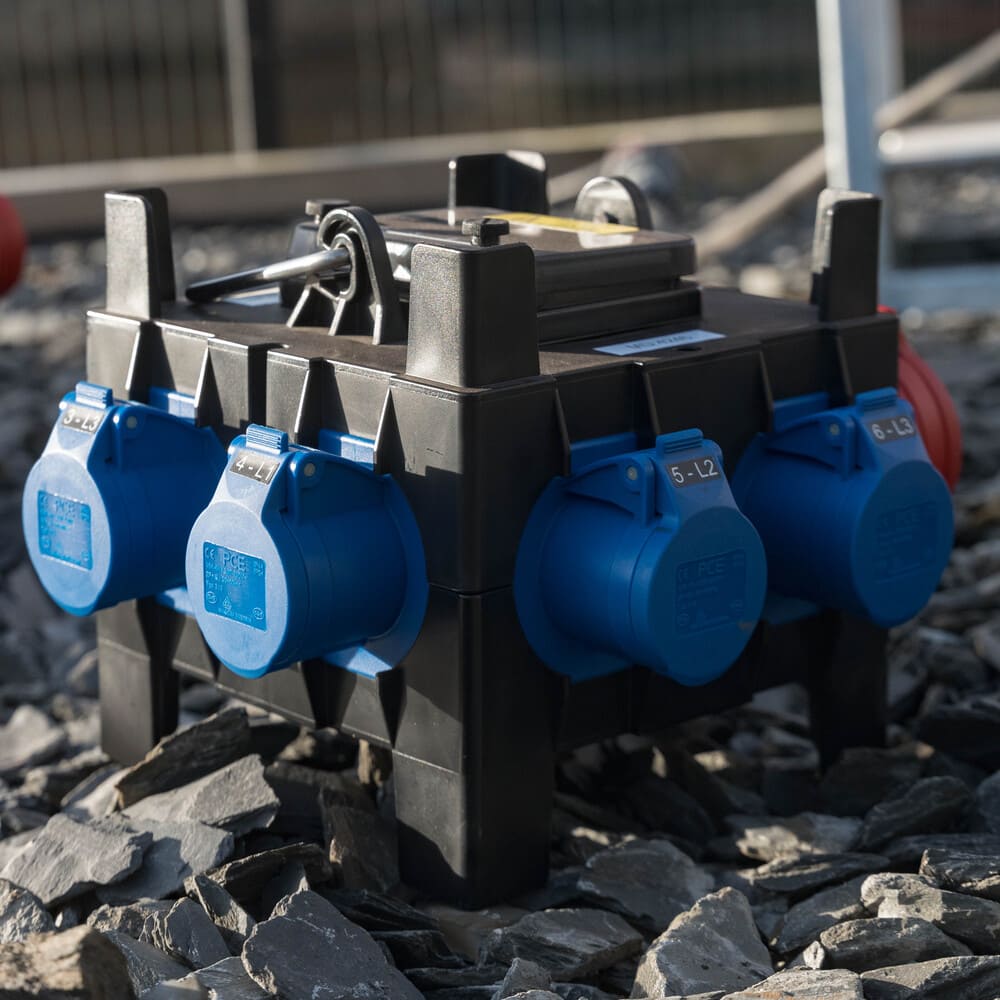

Black power distribution box with six blue industrial sockets placed on rocky ground outdoors.

Open red and white electrical control panel mounted on a galvanized metal frame with cables and connectors coiled at the base on a concrete floor.

Distribution Board EB24

Incoming

63a 5 pin IP67 Plug

Outgoing

1 x 63A 3 phase (Through), 6 x 32A 1 phase, 6 X 16A 1 phase

Outgoing Protection

1 x 63A 4P MCB, 6 x 32A 2P 30mA RCBO, 6 x 16A 2P 30mA RCBO

Size

340mm (H) x 560mm (W) x 350mm (D)

Weight

17kg

EB400 series (sample spec)

Incoming

800a rated powerlock connectors protected by a 630a ABB incoming breaker

Outgoing

Set of source powerlocks (Through), 3 x 125a 3phs skts, 3 x 63a 3ph skts, 3 x 63a 1ph skts, 3 x 32a 1ph skts, 2 x 16a 1ph skts

Outgoing Protection

MCCBs and ELRCs for the 125a skts, MCBs and Earth Leakage Modules for the 63a skts, RCBOs for the 32a 1ph and 16a 1 ph skts.

Size

H1400, W612, D510mm

Weight

150kg

Distribution Board EB25

Incoming

32a 3 ph

Outgoing

4 x 16a 1 ph skts

Outgoing Protection

16a 1 pg RCBOs

Size

Write feature info here

Weight

2 kg

32A 1 Phase Incomers

Board	Outgoing	Outgoing Protection	Size (H×W×D)	Weight
EB42	4 × 16A 1 phase	1 × 32A 2P RCBO 4 × 16A MCB	190 × 450 × 160 mm	4 kg
EB17	1 × 32A 1 phase 12 × 13A 230V BS1363 sockets	N/A	125 × 245 × 550 mm	6 kg

32A 3 Phase Incomers

Board	Outgoing	Outgoing Protection	Size (H×W×D)	Weight
EB11	3 × 32A 1 phase	3 × 32A 2P 30mA RCBO	300 × 400 × 350 mm	10 kg

63A 3 Phase Incomers

Board	Outgoing	Outgoing Protection	Size (H×W×D)	Weight
EB50	3 × 16A 3 phase 3 × 32A 3 phase	3 × 32A 4P 30mA RCBO 3 × 16A 4P 30mA RCBO	450 × 550 × 495 mm	33 kg
EB40	6 × 16A 3 phase	6 × 16A 4P 30mA RCBO	450 × 550 × 495 mm	25 kg
EB41	3 × 63A 1 phase	1 × 63A 4P MCB 3 × 63A 2P MCB	300 × 550 × 495 mm	17 kg
EB38	2 × 32A 3 phase 6 × 32A 1 phase 3 × 16A 1 phase	2 × 32A 4P 30mA RCBO 6 × 32A 2P 30mA RCBO 3 × 16A 2P 30mA RCBO	450 × 550 × 495 mm	25 kg
EB27	2 × 32A 3 phase	2 × 32A 4P 30mA RCBO	350 × 450 × 400 mm	13 kg
EB24	1 × 63A 3 phase (through) 6 × 32A 1 phase 6 × 16A 1 phase	1 × 63A 4P MCB 6 × 32A 2P 30mA RCBO 6 × 16A 2P 30mA RCBO	340 × 560 × 350 mm	17 kg
EB8	6 × 32A 1 phase	1 × 63A 4P MCB 6 × 32A 2P 30mA RCBO	450 × 550 × 495 mm	17 kg
EB6	1 × 63A 3 phase (through) 2 × 32A 3 phase	2 × 32A 4P MCB	350 × 450 × 400 mm	12 kg
EB2	1 × 63A 3 phase (through) 6 × 32A 1 phase 12 × 16A 1 phase	1 × 63A 4P MCB 6 × 32A 2P 30mA RCBO 12 × 16A 2P 30mA RCBO	600 × 550 × 495 mm	32 kg

125A 3 Phase Incomers

Board	Outgoing	Outgoing Protection	Size (H×W×D)	Weight
EB35	6 × 32A 3 phase	125A 4P MCCB 6 × 32A 4P 30mA RCBO	450 × 550 × 495 mm	30 kg
EB32	1 × 63A 3 phase 2 × 32A 3 phase 12 × 32A 1 phase 6 × 16A 1 phase	125A 4P MCCB 63A 4P MCB 2 × 32A 4P 30mA RCBO 12 × 32A 2P 30mA RCBO 6 × 16A 2P 30mA RCBO	600 × 550 × 495 mm	41 kg
EB28	3 × 63A 3 phase 3 × 32A 3 phase	125A 4P MCCB 3 × 63A 4P MCB 3 × 32A 4P 30mA RCBO	450 × 550 × 495 mm	30 kg
EB3	3 × 63A 3 phase	3 × 63A 4P MCB	300 × 550 × 495 mm	19 kg
